程范围：0-250N up to 0-50kN精度等级：<±0.25％/RC 输出信号：2mV/V 工作温度：-20℃—80℃
产品介绍

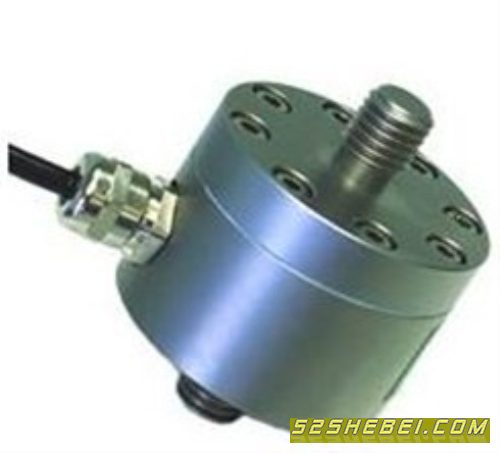

The DDEN range of submersible low profile load cells is designed for the measurement of tensile or compressive forces in underwater locations in situations where very high huity or occasional submersion due to flooding is likely.
The DDEN’s compact design proves to be advantageous by enabling in-line mounting of the load cell in a wide variety of applications where conventional load cells such as S-Beams will not fit.
The low deflection high natural frequency of the DDEN offers particular benefits in material testing cable tension monitoring applications.
The DDEN, as with all other Applied Measurements sensors, can be supplied complete with monitoring/control electronics calibrated as a system (please refer to the instrumentation datasheets).
A version fitted with an integral amplifier is also available. Designated as the DDENA, it can incorporate any of the ICA series amplifiers to provide a conditioned voltage or current output signal such as 0.1-10Vdc or 4-20mA.
技术参数：
尺寸规格：
