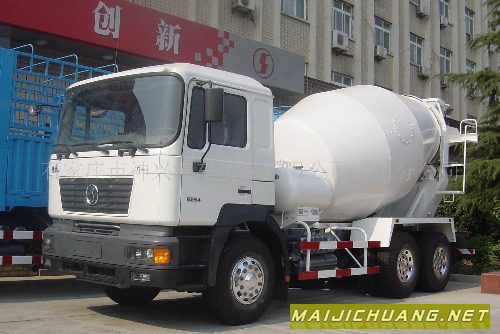

| 型 号 Model : 德龙搅拌筒简体几何容积 Drum specifications Geomeric volume of the drum (m3);14.9/17.4搅拌筒有效搅动容积 Drum specifications Mixing volume (m3): 9 m3（平道10 m3）/ 10 m3（平道11 m3）搅拌筒简体倾角 Drum specifications Gradient of the drum (。): 13/11.5搅拌筒添充率 Drum specifications Filling rate :61％/57％搅拌筒出料残余率 Drum specifications Rest rate :<1％搅拌筒简体工作转率 Drum specifications Rotational speed of the drum (r/min):0-20搅拌筒(出料能力)塌落度(Capacity) Slump 5cm (S/ m3 ):约About 25搅拌筒(出料能力)塌落度 (Capacity ) Slump 8-12cm (S/ m3 ):约About 18(液压驱动系统)油泵型号 (HYD.drive system)Pump Model :PV23或A4VTG90HW/32(液压驱动系统)油泵最大工作压力/排量 (HYD.drive system)Pump Max.Displacement (MPa/ml/r): 42/90(液压驱动系统)油马达型号(HYD.drive system) Motor Model :MF23或A2FM80(液压驱动系统)油马达最大工作压力/排量(HYD.drive system) Motor Max.Displacement (MPa/ml/r): 40/80(液压驱动系统)减速箱型号(HYD.drive system)Decelerator Model:PMB 7 asp(液压驱动系统)减速箱型号速比(HYD.drive system)Decelerator Ratio(i): 120供水系统供水方式 Water supply Water mode :气压供水供水系统水泵型号 Water supply Water pump model : -供水系统水箱容积 Water supply Volume of water tank (L) 288底盘型号 Chassis model : ZZ5257GJBM3841W ; SX5234GJBBS384轴距 Wheelbase (mm): 3825+1350 ; 3800+1350轮距 前/后 Tread front/rear (mm): 1939/1800最大行驶速度 Max.speed (km/h): 77最小转弯直径 Min.turing diameter (m): 24最小离地间隙 Min.ground clearance (mm): 240发动机型号 Engine model : WD615.46发动机最大功率 Max.Output (km/rpm): 266(360马力)发动机最大扭矩 Max.Torque (N.m/rpm): 1250/1300～1600百公里油耗量 Fuel consumption for 100km (L/100km): 30整车整备质量 Weigbt of superstructure chassis (kg): 12800最大装载质量 Max.Load (kg): 10570整车总质量 Gross weight of chassis (kg): 23500整车外形尺寸(长*宽*高)Appearance dimension(Length*Width*Height) (mm): 9186*2480*3774 |
