型号：YT16
品牌：YAMAHA
速度：6000UPH
精度：0.01mm
站位：16：超小型
YT16 超小型，高精度，方便快捷

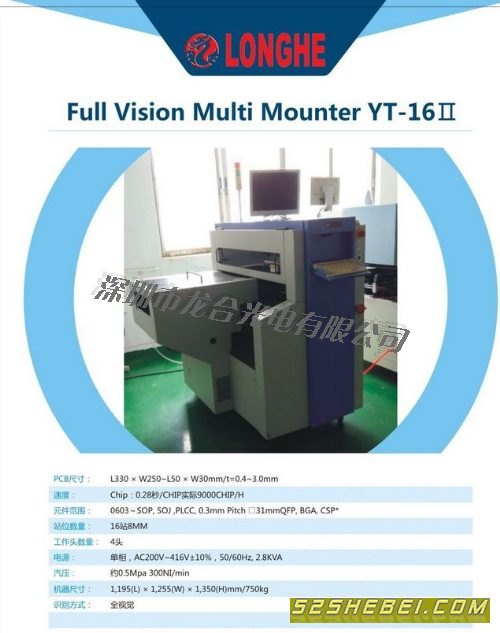

Model YT-16II
PCB dimensions L330×W250mm(Max) to L50×W30mm(Min)
Mounting accuracy When using Yamaha‘s stard components Absolute accuracy (µ + 3σ) : +/-0.05mm/CHIP, +/-0.05mm/QFP
Repeatability (3σ) : +/-0.03mm/CHIP, +/-0.03mm/QFP
Mounting cycle time Under optimum conditions 0.28sec/CHIP
No. of component types 16 types (max. for 8mm conversion)
External dimensions Small size cover model L995×W1,255×H1,350mm (Top part of signal tower 1,932mm)
Large size cover model L1,195×W1,255×H1,350mm (Top part of signal tower 1,932mm) |
