Deion描述:

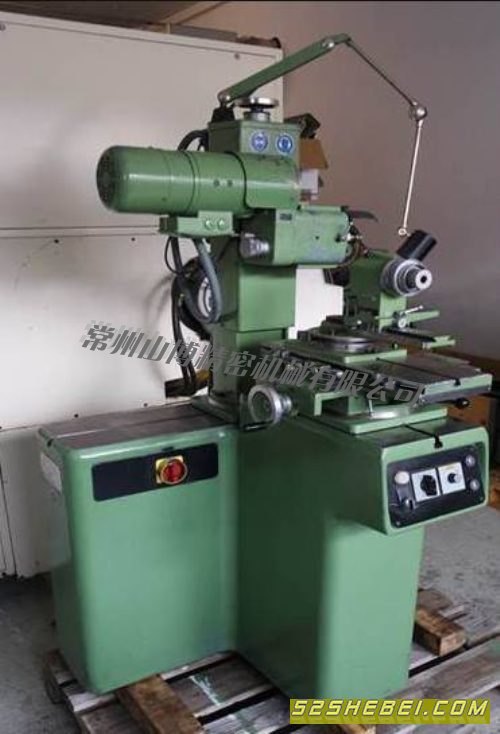

Suitable to manually grind different kinds of cutting, drilling tools milling cutters.
适合人工磨削不同型号的刀具、钻头、铣刀等
Specifications规格:
最大工件直径Max. tool dia. between the centres 238 mm, 磨削长度grinding stroke 190 mm, 工件行程tools slide traverse travel 100 mm, 磨头垂直行程grinding head vertical travel 325 mm, 主轴纵向进给grinding spindle longitudinal feed 5 mm,磨头旋转挂臂 grinding head bracket swivel 360°, 磨头旋转角度grinding head swivel 360°, 刀夹托架tool slide carrier 360°, 最大砂轮直径max. grinding wheel dia. 200 x 20 mm, 主轴步进速度stepless grinding spindle speed 2000 - 10000 rpm, 装载功率connected load 2 kW (400 volts / 50 Hz), 体积dimensions W x D x H, 1100 x 800 x 1760 mm, 重量weight 500 kg, 颜色colour green RAL 6011.
Accessories附件:
可调节的电动磨头motorised grinding head height adjustment, 步进速度主轴stepless grinding spindle speed, 螺旋磨削附件spiral grinding attachment, 尾座tailstock, 万能轨universal gauge, 砂轮修磨装置grinding wheel dressing device,手轮 hwheel unit, 半径研磨装置radius grinding device, 2个砂轮杆 grinding wheel mounts, 4 个分流盘dividing plates.
|
